4-in-1 Quad Wavelengths
Covers Fitzpatrick I–VI skin tones & all hair textures.
USA Coherent Laser Bar
100 Million shots service life with zero energy attenuation.
0–4°C Sapphire Ice Cooling
Painless treatment with maximum epidermal protection.
High Efficiency
Up to 80%+ permanent hair reduction in 3–5 sessions.
Advanced 4-Wavelength Diode Laser Technology
Our Arctic Series quad-wavelength diode laser is a professional medical-grade permanent hair removal system independently developed for global aesthetic clinics, medspas and beauty salons. Equipped with four core complementary wavelengths (755nm, 808nm, 940nm, 1064nm), it fully covers Fitzpatrick I-VI all skin tones and all hair colors from fine blonde vellus hair to thick dark coarse hair.
Adopting imported USA Coherent laser bars with 100 million shots service life, integrated 4-in-1 composite cooling system and multi-size interchangeable treatment tips, this machine delivers stable flat-top uniform energy output, minimal pain and low hyperpigmentation risk. After 3–5 standard sessions, clients achieve over 80% long-term permanent hair reduction, meeting high-demand full-body hair removal treatments including face, underarm, bikini, leg, back and beard.
We support full ODM customization for cabinet appearance, touchscreen multi-language UI and preset clinical modes, with complete international certification documents and global after-sales technical training support.
How It Works
Core Working Principle: Selective Photothermolysis
The core theory of diode laser permanent hair removal is selective photothermolysis:
-
Targeted Absorption: Four targeted wavelengths emit precise light energy that is selectively absorbed by melanin inside hair follicles, while the epidermal skin tissue absorbs negligible light.
-
Thermal Coagulation: Light converts into controllable thermal energy, permanently coagulates hair papilla and germinal matrix (the hair regeneration tissues). Damaged follicles lose the ability to grow new hair, realizing long-term hair reduction.
-
Epidermal Protection: Built-in real-time temperature sensor maintains 0–4°C constant sapphire surface cooling during emission, isolating excess heat to avoid epidermal burns, redness and post-treatment pigmentation.
Key Advantages
USA Coherent High Power Laser Bar
600W–3000W adjustable output power, stable flat-top energy distribution, 100 million shot service life, no energy attenuation during long-hour continuous salon work, consistent treatment results without uneven residual hair.

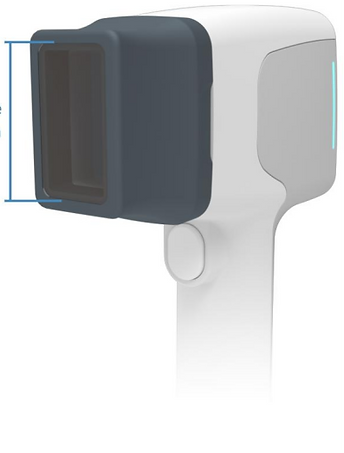

Multi-Size Interchangeable Treatment Tips
5 replaceable spot sizes for targeted symptomatic treatment of different body areas:
-
20*40mm Large Spot: Fast large-area leg & back treatment, greatly improve salon daily turnover
-
12*20mm Medium Spot: Standard limb & armpit hair removal
-
10*10mm Medium Small Spot: Bikini & jawline area
-
5*5mm Tiny Spot: Precision facial, nose, upper lip fine hair
Φ8mm Round Tip: Local small-area precise operation
Intelligent 0–4°C Sapphire Ice Cooling System
4-layer integrated cooling structure: Air cooling + water circulation + TEC semiconductor cooling + sapphire contact cooling.
-
Built-in temperature sensor inside the handpiece, constant 0–4°C glass surface during treatment
-
Pre-cool epidermis to form cold protective layer, block thermal damage
-
Dramatically reduce client pain, most treatments do not require thick numbing cream
-
Effectively eliminate post-treatment redness, swelling, blisters and hyperpigmentation risk
Stable Full-Set Heat Dissipation Hardware
-
Independent water tank, high-efficiency radiator, multiple DC cooling fans and imported DC pump maintain constant internal machine temperature at 25°C, support 24-hour non-stop salon operation without overheating failure.
15.6 Inch HD Smart Touch Screen
Intuitive large color touch display, adjustable parameters including pulse width 10–200ms, frequency 1–10Hz, fluence 0–120J/cm², laser intensity 5%–100%. Pre-set standard clinical modes for all body parts, multi-language UI customization available for global markets.
Four Wavelength Independent Targeted Advantages
-
755nm Alexandrite Wavelength: High melanin absorption, shallow precise penetration. Perfect for fair skin (Fitzpatrick I-II), fine light blonde hair, upper lip and facial vellus hair removal.
-
808nm Classic Diode Wavelength: Balanced penetration & melanin absorption, the universal gold standard. Suitable for most Caucasian, Asian medium skin and medium-thickness hair (armpit, legs, bikini area).
-
940nm Deep Penetration Wavelength: Strong absorption with subcutaneous fat tissue, reaches deep follicle layers. Specially designed for thick, coarse black beard, chest and back hair.
-
1064nm Nd:YAG Wavelength: Ultra-low epidermal melanin absorption, zero PIH risk. Exclusively for dark, tanned Fitzpatrick IV-VI skin, avoids darkening complications.
Clinical Applications
Full Clinical Treatment Areas
Suitable for all body parts of male & female clients across all skin and hair types:
-
Treatment Body Areas: Face, upper lip, sideburns, nose, underarm, arm, abdomen, bikini line, thigh, calf, back, chest, beard.
-
All Skin Types Covered: Fair, medium, olive, dark & tanned skin (Fitzpatrick I-VI).
-
All Hair Types Covered: Fine light hair, medium hair, thick coarse black hair.
Clinical Effect Data
Clinical verified treatment cycle results:
-
After 1–2 Sessions: 30%–50% visible hair reduction, thinner & slower hair regrowth.
-
After 3–5 Complete Sessions: Over 80% permanent long-term hair reduction. Residual ultra-fine colorless vellus hair is visually invisible, no repeated shaving required.
Clinic Profit Advantages
-
One machine covers all skin & hair groups, no customer loss due to unsuitable single wavelength equipment
-
Large 20*40mm spot greatly shorten single treatment time, boost daily salon client volume
-
Ultra-low post-treatment adverse reaction rate, high client satisfaction & repeat maintenance orders
-
Long service life laser bar reduces later maintenance & replacement cost
-
Supports full ODM private label customization for global beauty distributors
Factory Global Support
-
Complete English clinical operation manuals & step-by-step training videos
-
Free remote one-on-one technical training for your operation team
-
Global safe export packaging & worldwide door-to-door delivery
-
24/7 multi-language online after-sales troubleshooting
-
Full spare parts inventory for fast global shipment
-
Complete certification filing documents for EU, US and Southeast Asian markets
Technical Specifications
Specification
Detailed Parameter
Combined Wavelength
755nm + 808nm + 940nm + 1064nm
Handpiece Output Power
600W ~ 3000W Adjustable
Optional Spot Sizes
Φ8mm, 5*5mm, 10*10mm, 12*20mm, 20*40mm
Pulse Width Range
10ms ~ 200ms
Adjustable Frequency
1Hz ~ 10Hz
Fluence Energy
0 ~ 120J/cm²
Laser Intensity Regulation
5% ~ 100%
Sapphire Contact Cooling Temp
-5℃ ~ 5℃ (Constant 0–4°C)
Integrated Cooling System
Air + Water + TEC Semiconductor + Sapphire 4-in-1 Cooling
Control Screen
15.6 Inch Color Touch LCD Display
Global Input Voltage
AC 220V/50Hz, 110V/60Hz
Core Laser Bar
Imported USA Coherent Laser Bar (100 million shots)
Certifications
CE Medical, FDA, ISO13485, RoHS
