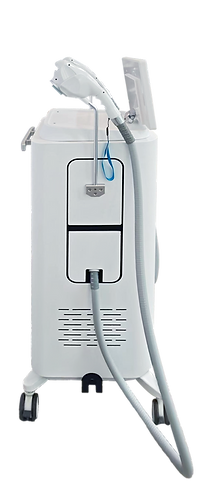

Broad Band Light IPL System | All-in-One Phototherapy for Pigment, Vascular, Acne & Hair Removal
Intelligent Sub-Pulse Technology, Ultra-Stable Energy & Fast Cooling for Gentle, Safe Full-Spectrum Skin Treatments.
Constant Effective Energy
Intelligent sub-pulse technology locks energy at a stable level, delivering ideal clinical outcomes with lower burn risks.
Automatic Filter Identification
Smart touchscreen instantly recognizes interchangeable filters, speeding up clinic workflow and reducing manual error.
Rapid Contact Cooling
Advanced cooling reaches 0°C in 3 minutes to minimize thermal damage, ensure painless therapy, and quicken skin recovery.
Advanced Broad Band Light (IPL) Technology
Our professional Broad Band Light (upgraded IPL) device adopts advanced selective photothermolysis optical technology, delivering wide-spectrum pulsed light that targets multiple skin lesions simultaneously. Different wavelength filters are selectively absorbed by skin pigments, hemoglobin and tissue moisture to resolve common facial and body skin concerns. Beyond lesion clearance, this system stimulates fibroblast activity, boosts collagen and elastin synthesis, remodels skin texture, and reverses signs of photoaging to deliver smoother, firmer, younger-looking skin with minimal discomfort and zero downtime.
How It Works
Pre-treatment Assessment: Target skin displays typical photoaging signs, including dullness, persistent redness, broken capillaries, and pigment spots.
Selective Irradiation: Customized wavelength filtered pulsed light deeply penetrates the skin, selectively acting on abnormal target tissues without harming healthy surrounding epidermis.
Post-treatment Remodeling: Targeted lesions are safely metabolized and eliminated, while continuous collagen regeneration improves long-term skin elasticity, tone, and texture.
Key Advantages
Industry-Leading Energy Stability
8-Capacitor Stable Power Supply System: Built-in large capacitor bank stabilizes output voltage and current for consistent, uniform energy delivery throughout continuous treatment sessions. Optimized pulse performance strengthens overall machine safety, anti-interference capability and heat dissipation, eliminating energy attenuation during full-day salon use.
Dual Lamp Gentle Energy Output: Dual-lamp design distributes energy evenly across the treatment spot, avoiding localized overheating and delivering milder, more tolerable light therapy for sensitive skin clients.
Intelligent Sub-Pulse Control
Intelligent Multi Sub-Pulse Technology: Supports 10P / 20P / 30P adjustable sub-pulse trains. Unlike conventional IPL machines, this system locks energy at a constant effective level and balances output from start to finish. Soft, gradual thermal energy achieves ideal clinical outcomes while drastically boosting patient comfort and lowering burn risk.
Ultra-Fast Rapid Cooling System: The treatment handpiece cools down to 0°C within only 3 minutes before treatment. Advanced contact cooling minimizes thermal skin damage, reduces pain and post-procedure redness & swelling, shortens skin recovery time, extends machine service lifespan and maintains long-term energy stability.
Ergonomic & High-Efficiency Design
Ergonomic Lightweight Handpiece & User-Friendly Interface: Optimized curved handpiece reduces operator fatigue during long shifts. Intuitive touchscreen software displays dedicated modules for hair removal, pigment therapy, vascular repair, acne clearing, wrinkle reduction and skin rejuvenation, with adjustable fluence, pulse and frequency parameters for fully personalized treatments.
Large 15mm*45mm Treatment Spot: Extra-wide spot size accelerates full-face and body treatment, cutting each client’s service time and increasing your clinic’s daily booking capacity and revenue.
Clinical Applications
Versatile Clinic Integration: Perfectly suitable for professional beauty spas, aesthetic clinics, and advanced skincare centers, this multi-filter intelligent IPL platform covers six core high-margin treatments in one single device.
Intelligent Filter Configuration
-
6 Standard Interchangeable Filters: 420nm / 515nm / 560nm / 590nm / 640nm / 695nm
-
2 Optional Upgraded Filters: 615nm / 800nm
Body Care & Hair Removal Mode
Permanent Hair Reduction (695nm / 800nm): Delivers safe, high-efficiency, full-spectrum hair removal for multiple body areas.
Aesthetic Facial Treatments
-
Pigment Fading (515nm / 560nm): Targets and clears freckles, sun spots, melasma, and stubborn post-inflammatory hyperpigmentation (PIH).
-
Vascular Repair (590nm): Eliminates superficial red blood streaks, facial flushing, and broken capillaries.
-
Acne Clearing (420nm): Destroys acne-causing bacteria and controls recurrent inflammation to purify the skin.
-
IPL Skin Rejuvenation (560nm / 590nm): Restores a smoother texture by shrinking enlarged pores and brightening overall skin tone.
-
Wrinkle Reduction (615nm / 640nm): Stimulates fibroblast activity to boost collagen synthesis, softening fine lines and reversing photoaging.
Technical Specifications
Specification
Details
Energy Range：
5J–40J/cm²
Sub-Pulse Modes:
10P / 20P / 30P
Pulse Width:
0.2ms – 1.5ms
Pulse Interval:
1.5ms – 10.0ms
Adjustable Frequency:
1Hz – 3Hz
Cooling Level:
1–5 adjustable grades
Treatment Spot Size:
15mm × 45mm
Standard Smart Filters:
420nm, 515nm, 560nm, 590nm, 640nm, 695nm
Optional Extra Filters:
615nm, 800nm
Core Power Configuration:
8-capacitor stable power bank, dual lamp light source
Cooling System:
Rapid contact cooling (handpiece down to 0°C within 3 mins)
Operation System:
Intelligent touchscreen with auto filter identification
